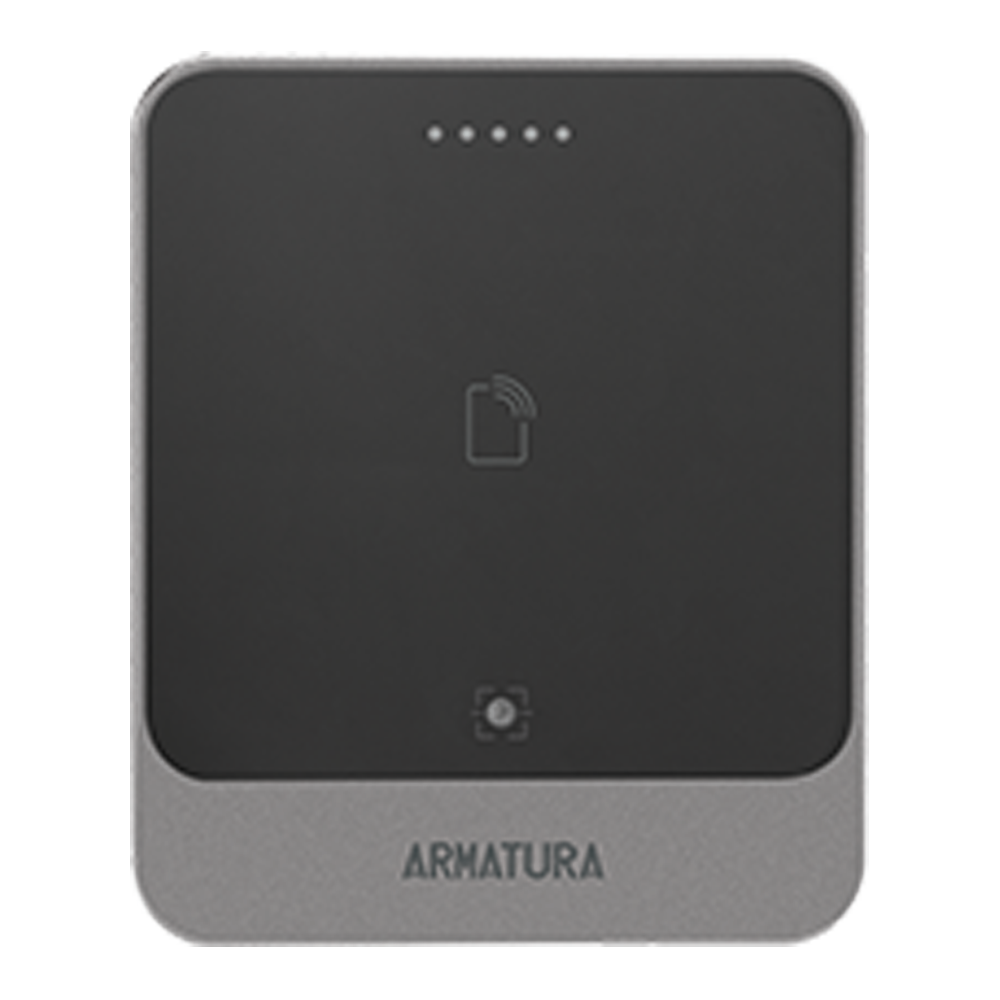

Explorer Series – EP20CKQ All Weather Outdoor Multi-tech Smart Reader
The EP20 reader series is one of the most compact multi-tech RFID readers in the market, which supports over 100 RFID card types and both mobile NFC and Bluetooth (Low Energy) and is suited for most installation environments. Embedded touch keypad enables passwords as an authentication option for users to best suit their needs.
Explorer Series – EP20CKQ All Weather Outdoor Multi-tech Smart Reader
The EP20 reader series is one of the most compact multi-tech RFID readers in the market, which supports over 100 RFID card types and both mobile NFC and Bluetooth (Low Energy) and is suited for most installation environments. Embedded touch keypad enables passwords as an authentication option for users to best suit their needs.
| Category | EP20CQ | EP20CKQ |
|---|---|---|
| Internal Number | EP20CQ | EP20CKQ |
| Operating Frequency / Standards |
125 kHz 13.56 MHz: ISO14443A types A & B, ISO15693 2.4 GHz Bluetooth |
125 kHz 13.56 MHz: ISO14443A types A & B, ISO15693 2.4 GHz Bluetooth |
| Functions | RFID, Bluetooth and QR Code | RFID, Bluetooth and QR Code |
| Keypad | N/A | Touch Keypad |
| QR Code Scanner | Supported | Supported |
| QR Code Scanning Pattern | Area Image (648 × 488 pixel array) | Area Image (648 × 488 pixel array) |
| QR Code Scan Angle | Horizontal: 66° | Vertical: 50° | Horizontal: 66° | Vertical: 50° |
| QR Code Capability |
One-Dimensional Codes
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE93 Full ASCII, CODE93, CODE128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar, MSI, Plessey, GS1 Two-Dimensional Codes QR Code, PDF417, Data Matrix, MicroPDF417, Aztec |
One-Dimensional Codes
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14, UCC128, ISBN/ISSN, CODE11, CODE32, CODE39, CODE93 Full ASCII, CODE93, CODE128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar, MSI, Plessey, GS1 Two-Dimensional Codes QR Code, PDF417, Data Matrix, MicroPDF417, Aztec |
| QR Code Scanning Performance |
Narrow Width
6.0 mil, 9.0 mil, 15.0 mil, 20.0 mil (Code128) Depth of Field 2.0"–3.1", 2.0"–4.7", 2.3"–7.7", 2.3"–9.8" |
Narrow Width
6.0 mil, 9.0 mil, 15.0 mil, 20.0 mil (Code128) Depth of Field 2.0"–3.1", 2.0"–4.7", 2.3"–7.7", 2.3"–9.8" |
| Communications & Panel Connection | Wiegand OSDP (v2.2) via RS485 |
Wiegand OSDP (v2.2) via RS485 |
| Power Requirement | 9 VDC to 24 VDC | 9 VDC to 24 VDC |
| Operating Temperature | -22°F – 158°F | -22°F – 158°F |
| Dimensions | 3.54" × 4.24" × 0.93" | 3.54" × 4.24" × 0.93" |
| Housing Material | Polycarbonate UL94-V0 & UL746C (F1) | Polycarbonate UL94-V0 & UL746C (F1) |
